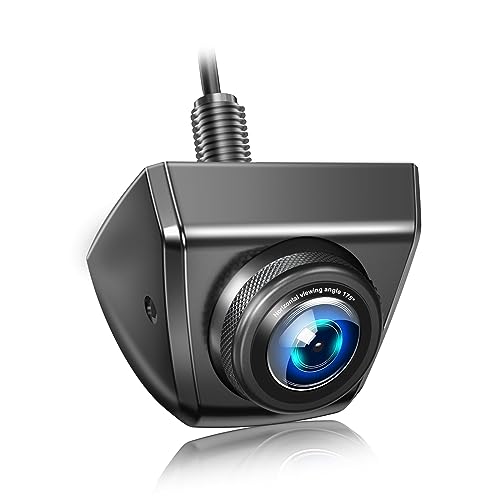

PARKVISION AHD 720P Reversing Camera HD 175° Wide Viewing Angle Adjustable Rear View Camera Metal Housing Parking Rear Camera for Car, SUV, RV, Caravan, Van, Pickup

High Definition 720P Car Parking Camera: The default setting for the rear view camera is the AHD-NTSC 720P TV signal system (CVBS-NTSC TV signal system can be switched through a coil), with an RCA video interface. If your radio is set to CVBS-NTSC TV signal system by default, please switch the camera to CVBS signal after installation to avoid issues such as no display images due to inconsistent radio parameters with the camera.
HD Rear View Camera Car: With an adjustable camera lens and 175° viewing angle, most blind angles are covered. It is compatible with most vehicles (except dash cams or mirror recorders).*After connecting, there is no image available. Please contact us directly via email for assistance.
Car Backup Camera: Built-in rotating metal camera body, unlike old-fashioned car reverse cameras that can only adjust the viewing angle by adding gaskets, you can rotate the lens part of the rear view camera to find the best viewing angle with the help of the mini wrench, never need to worry about too high or too low image on the monitor. Mini housing made of solid zinc alloy, longer service life.
High Reliability Car Parking Camera: Applicable to different usage needs, this model PJ-115A rear camera equipped with 3 x swtich cable loops: ①Cut the blue cable loop to switch rear view to front view, ②Cut the white cable loop to switch Parkingline ON to OFF, ③Unplug the white plug to switch AHD video signal to CVBS video signal. You can according to the actual situation to cut off the cable loops. Please restart the camera power supply after cutting cables.
Good Night Vision Rear Camera: The picture is smooth and the image is clear. With the help of reverse light or street light, the road and driving condition is clearly visible in the dark night, which increases driving safety. 【Optional Purchase of Accessories】: If need longer extension cable, please search 4pin camera extension cable in PARKVISION Store to purchase separately.
Attention: Our AHD rear view camera supports AHD 720P 30HZ（AHD-NTSC signal system) and AHD 720P 25HZ(AHD-NTSC signal system). According to our practice, some Android head units have the setting for AHD video signal, but the truth is that they cannot display AHD image because they don’t support AHD at all. If so, then you can only use the CVBS video signal, to avoid image problems.
PLEASE NOTE: If the product manual you received is not in English, please contact our customer service email promptly: service-eu@parkvision.com.cn. We will process and provide you with electronic PDF instructions as soon as possible.
